Explosion Proof (Ex-Proof) Lightings Singapore | Rig-A-Lite

Posted by Justin Tan on



EXA03 LED Ex-Series explosion-proof LED high-bay lighting for hazardous-rated locations

Standard Features:
  • Available in 30W, 40W, 50W, 60W, 70W
  • Input Voltage: AC100-277V, optional AC 277-480V
  • Pendant, ceiling, wall, trunnion, 25° stanchion mounting options
  • 120° beam angle
  • Max operating temperature range: -40°C to 65°C
  • IP66 & IK10 double protection
  • Quick connection design, more convenient and faster installation and wiring
  • Optional stainless steel guard
  • Die-cast aluminum body and corrosion resistant frame








Classifications:
  • Class I, Division 1, Groups B, C & D
  • Class II, Division 1, Groups E, F & G
  • Class II, Division 2, Groups F & G
  • Class I, Zone 1, Groups IIB plus hydrogen
  • Class I, Zone 2, Groups IIB plus hydrogen
  • Zone 20 and Zone 21
  • Zone 22
  • IECEx approvals
     Ex db IIC T6/T5 Gb

    Ex tb IIIC T80 C/T95 C Db IP66
  • ATEX approvals
     II 2G Ex db IIC T6/T5 Gb
    • II 2D Ex tb IIIC T80 C/T95 C Db IP66

  • UL 1598A marine outside type
  • IP66
  • IK10
  • rine outside type
  • IP66, IK10

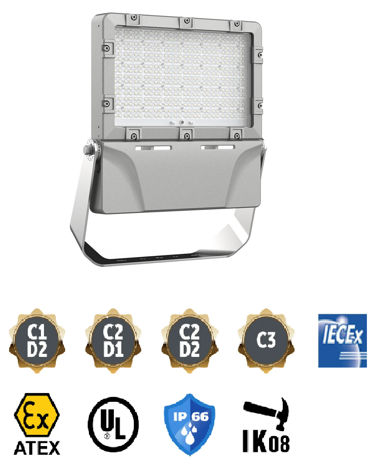

EXA04 LED Ex-Series explosion-proof LED flood light for hazardous-rated locations

Standard Features:
  • Available in 150W, 200W, 240W
  • Efficiency is up to 150Lm/W
  • 12 optical patterns available to accommodate a variety of applications
  • Max operating temperature range: -40°C to 65°C
  • IP66 & IK08 double protection
  • Optional stainless steel guard and visor
  • Adjustable bracket, mounting angle ± 90°
  • Warm white/cool white color and colored R/G/B/Amber options
  • Standard 10Kv surge protection
  • 5-year warranty






Classifications:
  • Class I, Division 2, Groups A, B, C & D
  • Class II, Division 1, Groups E, F & G
  • Class II, Division 2, Groups F & G
  • Class III
  • Class I, Zone 1, Groups IIC, IIB, IIA
  • Zone 21, Zone 22
  • IECEx approvals
     Ex nR IIC T6/T5 Gc

    Ex tb IIIC T80 C/T95 C Db IP66
  • ATEX approvals

    • II 3G Ex nR IIC T6/T5 Gc

    II 2D Ex tb IIIC T80 C/T95 C Db IP66

  • UL 1598A marine outside type
  • IP66
  • IK08

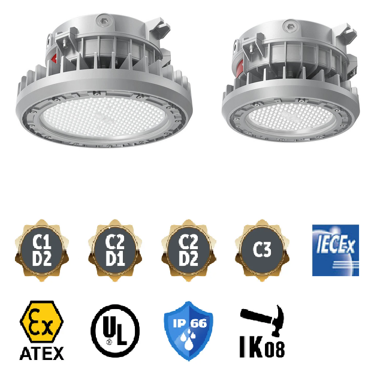

EXA05 LED Ex-Series explosion-proof LED area lighting for hazardous-rated locations

Standard Features:
  • Available in 30W, 50W, 75W, 100W, 120W, 150W, 180W, 200W, 240W
  • Input voltage: AC100-277V, AC 277-480V (50/60Hz)
  • Pendant, ceiling, wall, trunnion, 25° stanchion, and 90° stanchion mounting options
  • Type I, III, and V light distribution options
  • Max operating temperature range: -40°C to 65°C
  • Optional stainless steel guard
  • Flip-type structure for easy access to internal components
  • Die-cast aluminum body and frame
  • Corrosion resistant, rugged construction ensures long life and safe operation
  • Provides up to 1620 lumens illumination for 90 minutes or 720 lumens illumination for 3 hours of emergency lighting

Classifications:
  • Class I, Division 2, Groups A, B, C & D
  • Class II, Division 1, Groups E, F & G
  • Class II, Division 2, Groups F & G
  • Class III
  • IECEx approvals
     Ex nR IIC T6/T5 Gc

    Ex tb IIIC T80 C/T95 C Db IP66
  • ATEX approvals
     II 3G ExnR IIC T6/T5 Gc

    II 2D Ex tb IIIC T80 C/T95 C Db IP66
  • UL 844 hazardous locations
  • UL 1598A marine outside type
  • IP66
  • IK08



EXA06 LED Ex-Series explosion-proof LED linear lighting for hazardous-rated locations

Standard Features:
  • Available in 20W, 30W, 40W, 50W, 60W, 70W, 80W, 100W
  • Warm white/cool white color and colored R/G/B/Amber options
  • Various installation methods are available to meet different application demands
  • Type I, III, and V light distribution options
  • End cable entry M25x1.5, M20x1.5, M32x1.5, 3/4″ NPT, 1/2″ NPT, and 1″ NPT
  • Three conduit holes are reserved for interconnection of fixtures, greatly facilitating onsite installation and wiring
  • Made of fiber-reinforced plastic, offering superior corrosion resistance for marine use
  • Clear or diffused lens optional, 14 optic lenses for different light design requirements
  • Provides up to 20W illumination for 90 minutes or 10W illumination for 3 hours of emergency lighting

Classifications:
  • Class I, Division 2, Groups A, B, C & D
  • Class II, Division 2, Groups F & G
  • Class III
  • IECEx approvals
     Ex nR IIC T6/T5 Gc

    Ex tb IIIC T80 C/T95 C Db IP66
  • ATEX approvals
     II 3G Ex nR IIC T6/T5 Gc

    II 2D Ex tb IIIC T80 C/T95 C Db IP66

  • UL 1598A marine outside type
  • IP66
  • IK08



EXA10 LED Ex-Series explosion-proof LED low-bay lighting for hazardous-rated locations

Standard Features:
  • Available in 30W, 40W, 50W, 60W, and 75W options, with a maximum luminous efficiency of 160 Lm/W
  • Warm white to cool white (2000K-6500K) and colored LEDs (R/G/A) are available
  • Type I, III, 60° and 90° light distribution options
  • Special optical design with curved glass allows for upward light distribution greater than 8%
  • Features a dip switch for power adjustment
  • Optional protective wire guard, safety cables, cone top, and fuse are available
  • Available configurations include emergency, dimming, and emergency dimming
  • Multiple installation options to meet different needs: ceiling pendant, wall, pole, or trunnion mount
  • Dimming methods include 1-10V and 0-10V

Classifications:
  • Zone 2
  • Zone 21, Zone 22
  • IECEx approvals
     Ex nR IIC T6/T5 Gc

    Ex tb IIIC T80 C/T95 C Db IP66
  • ATEX approvals
     II 3G Ex nR IIC T6/T5 Gc

    II 2D Ex tb IIIC T80 C/T95 C Db IP66
  • IP66
  • IK08
